Product layer structure

Product layer structure

  Type Coating layer Specifications and Features



Touch                     Sensor


ITO type

TP                  • Resistance:300~500ohm
• 2Layer structure product, Ty≧90%
• 3Layer structure, improve transmittance, Ty≧93%
• Size : 200x200mm ~ 600x800mm
• Thickness: 0.3 ~ 2.9 mm
• Production line : VIS3 , VIS4

TN
STN
 • Resistance:4~200ohm
• 2Layer structure product
• Product Ty varies with ITO thickness: Ty 72 ~ 88%
• Size: 200x200mm ~ 600x800mm
• Thickness: 0.3 ~ 2.9 mm
• Product line: VIS4
• Include DITO double side ITO  coating product.


IMITO                 • CTP sensor application
• Resistance:22~100ohm
• With photo line size: 400X500mm ,400X520
• Thickness: 0.7~1.1mm
• Product line: VIS3 ,VIS5
• Include DITO double side ITO  coating product.
Metal                               • CTP sensor application , Metal wire.
• Metal standard structure : Mo-Al-Mo , according to customer needs
• Metal Cr-Al-Cr , corning specified use
• Resistance :0.1~0.3ohm ,thickness:280~950nm
• With photo line size: 400X500mm ,400X520
• Thickness: 0.7~1.1mm
• Product line: VIS4 ,VIS5
  Type Coating layer Specifications and Features
Cover (Optical)


AR

• Cover is the main item, applied to Kanban. Various electronic products (indoor):

• Optical Specifications


• Size: 200x200mm ~ 1200x2000mm
• Thickness: 0.3 ~ 6 mm
• Can be matched with Ink printing
• Production line : VIS5
IR     • The cover of the outdoor sign is the main item
Optical Specifications

•Special advantage:
•At the same time, it has AR+IR-cur optical function
•Visible spectrum 400~700nm, Ty ≧93%
•Infrared Spectrum 900~1400nm , Reflection ≧45%
•Size:200x200mm ~ 1200x2000mm
•Thickness:0.3 ~ 6 mm
•Can be matched with Ink printing
•Production line : VIS5
  Type Coating layer Specifications and Features

Cover
(Optical)

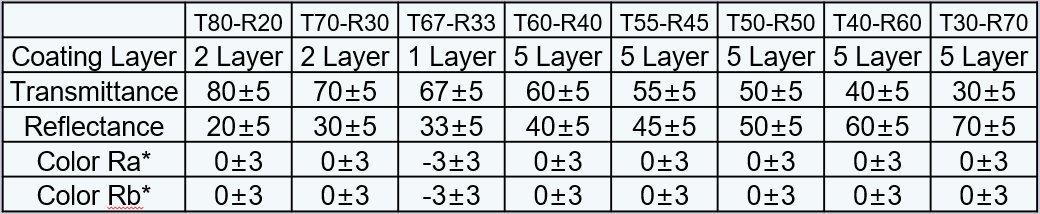

Half
mirrorE-mirror

T80-R20
T70-R30

T67-R33

T60-R40
T55-R45
T40-R60
T70-R30

• Cover is the main item, which is used in various electronic products, and has the characteristics of display and mirror at the same time.
• Optical Specifications
• Size:200x200mm ~ 1200x2000mm
• Thickness:0.3 ~ 6 mm
• Can be matched with Ink printing
• Production line :  VIS5

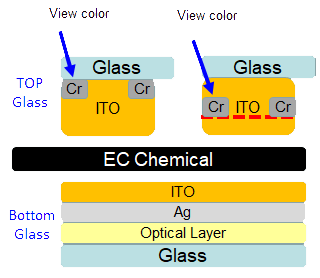

EC mirror EC mirror • EC mirror Top glass structure
• With Cr Frame ,and adjust ITO thickness ,to change the color of Cr frame.
• Resistance control  ≦ 15ohm
• Size : 200x200mm ~ 600x800mm
• Thickness :0.3 ~ 2.9 mm
• Production line : VIS4
• EC mirror Bottom glass structure
• Use Ag high reflection material.
• Resistance control ≦ 5ohm
• Size : 200x200mm ~ 600x800mm
• Thickness : 0.3 ~ 2.9 mm
• Production line : VIS4
